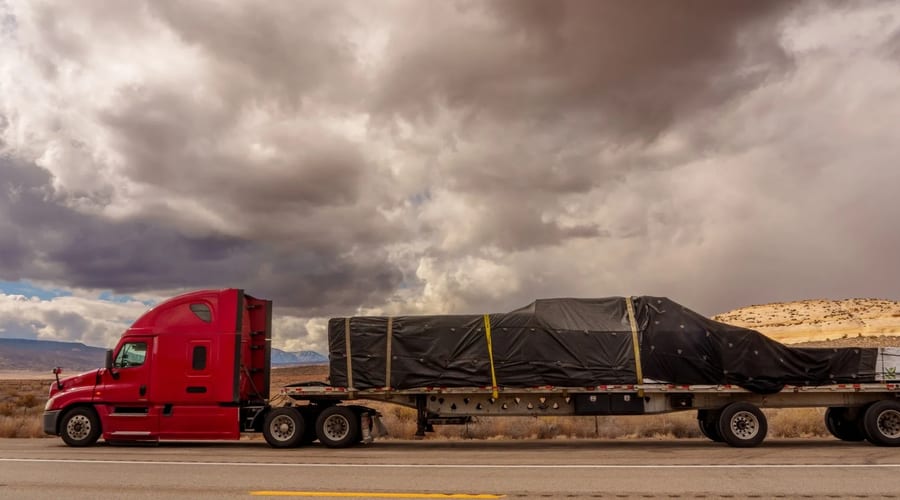

Flatbed
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
48,000 lbs.
|
Maximum Freight Dimensions
|
Length
Width
Height |
48 feet
8.5 feet (102")
8.5 feet (102") |
|
|
 |
|
|

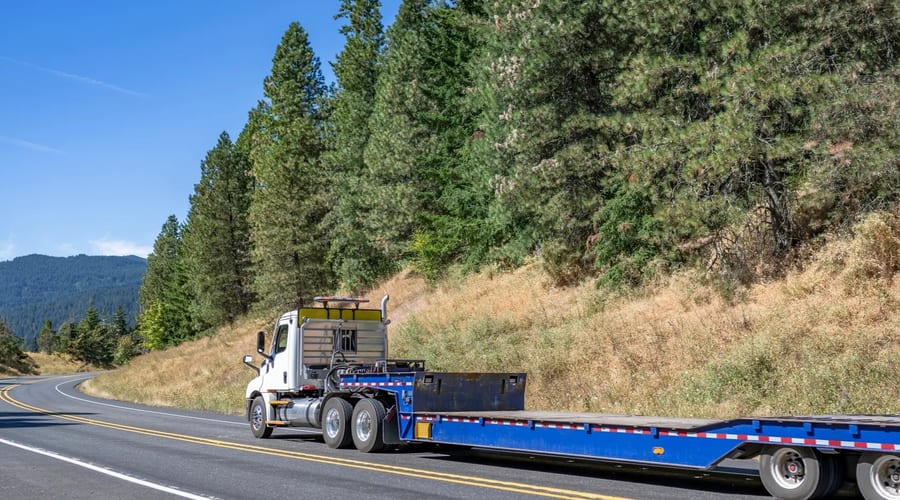

Single-Drop Deck (aka Stepdeck)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
48,000 lbs.
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
37 feet
8.5 feet (102")
10 feet (120") |
Front Deck
Length
Width
Height |
Max. Dims.
11 feet
8.5 feet (102")
8.5 feet (102") |
|
|
 |
|
|
Double-Drop Deck
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
45,000 lbs.
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
29 feet
8.5 feet (102")
11.5 feet (138")
|
Front Deck
Length
Width
Height |
Max. Dims.
10 feet
8.5 feet (102")
8.5 feet (102") |
Rear Deck
Length
Width
Height
|
Max. Dims.
9 feet
8.5 feet (102")
10 feet (120") |
|
|
 |
|
|
Double-Drop w/Detachable Deck (aka Lowboy, RGN)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
44,000 lbs.
|
|
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
29 feet
8.5 feet (102")
12 feet (144")
|
Front Deck
Length
Width
Height |
Max. Dims.
10 feet
8.5 feet (102")
8.5 feet (102") |
Rear Deck
Length
Width
Height
|
Max. Dims.
9 feet
8.5 feet (102")
10 feet (120") |
|
|
 |
|
|
Enclosed Box Trailer (aka Dry Van)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
45,000 lbs.
|
|
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
52 feet
8 feet 5 inches (100")
9 feet 2 inches (110") |
|
|
 |
|
|
Stretch Flatbed
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
45,000 lbs.
|
|
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
48 - 50 feet
8 feet (96")
8.5 feet (102") |
|
|
 |
|
|
Stretch Single-Drop Deck
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
43,000 lbs.
Maximum Freight Dimensions
|
|
Main Deck
Length
Width
Height
|
Max. Dims.
38-63 feet
8 feet (96")
10 feet (120") |
Front Deck
Length
Width
Height |
Max. Dims.
10 feet
8 feet (96")
8.5 feet (102") |
|
|
 |
